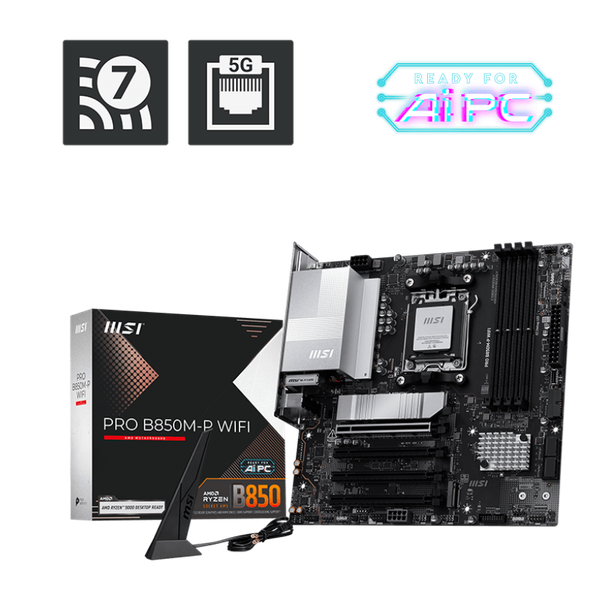

Placa mãe MSI PRO B850M-P WIFI
Placa mãe MSI PRO B850M-P WIFI
Chipset AMD B850CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.• The DIMM slots on this motherboard only have single-sided latches.
Onboard Graphics 1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot 4x PCI-E x16 slot (Qty)PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio Realtek® ALC8977.1-Channel High Definition Audio
Storage 3x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices4x SATA 6G (Qty)
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)LANRealtek® 8126VB 5G LANInternal IO
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
*ATENÇÃO: apenas para os Estados de TOCANTINS, MARANHÃO e RORAIMA será cobrado a diferença de ICMS (DIFAL), conforme regra Tributária destes 3 Estados da federação.
TOCANTINS: 18% do Valor do produto.
MARANHÃO: 23% do valor do produto.
RORAIMA: 18% do valor do produto.
Caso seja de algum destes 3 únicos Estados, consulte o vendedor antes de finalizar sua compra sobre a forma de pagamento do DIFAL, caso contrario o pedido poderá ser cancelado.
Para OS OUTROS ESTADOS, não há essa cobrança e a venda se mantém normalmente.
